USB camera, as a key component in the consumer electronics field, have become essential computer accessories. The convenience of video communication is widely recognized, and with live streaming and video content creation being current market trends, USB cameras play a vital role. As a webcam manufacturer with years of experience in this industry, Anywii aims to share insights about USB cameras as an electronic product through this article.
What is a USB Camera
A USB camera is a digital device that connects directly to a computer via a USB interface. Images captured by this camera are transferred to the computer and displayed through software (like Windows Camera). It is commonly used for video conferencing, distance education, and live streaming.
USB Camera is A Type of Digital Camera
Cameras are typically classified into two categories: Digital and Analog. USB cameras, a type of digital camera, can directly capture images and convert them into digital signals for immediate processing by a computer. Conversely, analog cameras convert images into analog video signals, which then need to be converted back into digital signals via a device like a video capture card before they can be processed by the computer.
USB Camera is Plug and Play
People often say that USB camera for PC does not require drivers, which is actually inaccurate. When the camera work with computer, you plug in the camera and the computer system will immediately recognize it and find a suitable driver for it.
Using the USB interface for transmission means that the UVC protocol is required. Mainstream operating systems such as Windows, Mac have built-in UVC protocols, so there is no need to install additional drivers for USB cameras. Moreover, the power used by the USB camera can be obtained directly from the motherboard USB interface and the computer, without the need for an additional power converter.
Therefore, usually all USB cameras are plug-and-play and adapt to most computer software with image display functions, such as Zoom, Skype, OBS, etc.
How does USB camera work
To understand how USB web camera work, we first need to have a general understanding of the core components and structure of the camera module structure.

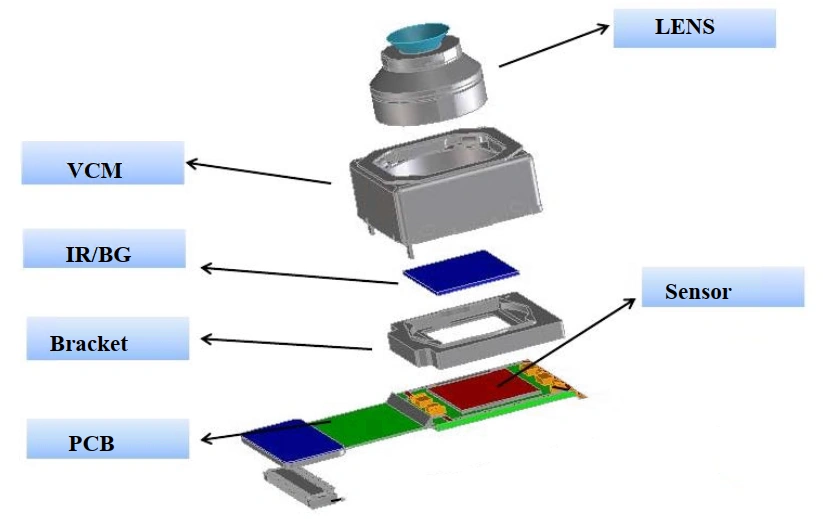

Structure of Module of PC Camera
When we disassemble a USB camera, we find wires, shells, and other components. However, the heart of the camera is the camera module, which includes the Lens, Infrared Filters, Image Sensor, and Digital Signal Processing(DSP) chips. These parts work together to manipulate light, forming the image we eventually see on our computer screen

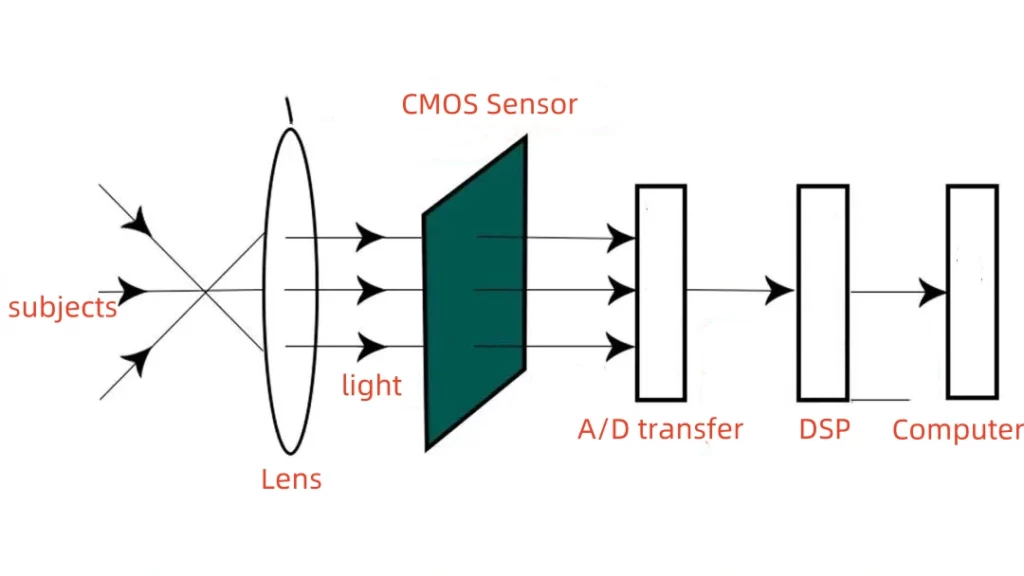

How components of USB camera work together
First, the camera module will complete the work of converting the optical image of the object into a digital signal. The digital signal will be transmitted to the computer through the cable and USB port for processing, and finally the image will be output to our computer screen:
- Subjects creates an optical image through the lens.
- Optical image projected onto the sensor and converted into an electronic signal, which is then converted into a digital signal through A/D.
- Digital signal is transmitted to the digital processing chip for processing.
- Processed digital signal transferred to computer via USB port
- Computer processes digital signals to form an image and transmits it to a screen for display
Main Specifications of USB Camera
The main specifications of the usb camera include resolution and pixels, frame rate, FOV, focus method, image format, etc. Another benefit of a brief understanding of the structure and workflow of USB camera in last chapter is that you can better understand what this chapter is about: The reason for the difference in parameters of the USB camera is largely due to the different selection of core electronic components of the camera module.
Resolution and Pixels
Resolution and pixels can be regarded as one of the most important indicators of the clarity of the image output by the USB camera. The higher the resolution and the larger the pixel value, generally speaking, the clearer the image.
They also have conversion relationship, for example, a picture captured from 1080P camera, since this picture covers 1920 (W) * 1080 (H), which is 2,073,600 pixels, the relationship between pixels and resolution is discussed in Decoding Mega pixel: Understanding Camera Resolutions
It is worth mentioning that the resolution of a USB camera is generally determined by the sensor. The size of the sensor and the size of the pixel dot affect how many pixels can be accommodated on the sensor. The length and width distribution of pixel dots on the sensor is the resolution of the USB camera
Of course, the lens will also affect the clarity, but technically speaking, the resolution of the sensor is the resolution of the USB camera.
Frame Rate
Frame rate is extremely important for live streaming and video recording experience. Although it does not directly affect the clarity of the picture, it shows the number of images displayed per second. For example, 30fps means displaying 30 images per second, and 60fps means displaying 60 images per second, which is very A good explanation of why high frame rate device, like a 60fps webcam, has a great impact on video quality. A higher frame rate in a video means that the actions in the video appear smoother in the eyes of the audience and the experience is better.
Is a higher fps USB webcam always better?
Not exactly, the normal frame rate range of the human eye is between 30fps and 60fps, which means that between this frame rate, we can perceive an improvement in the smoothness of the picture through the increase in frame rate, and once it exceeds 60fps, the smoothness of the picture will It is difficult for the human eye to recognize changes in degree, so now high frame rate USB webcams are mainly 60fps, and conventional USB camera are all 30fps.

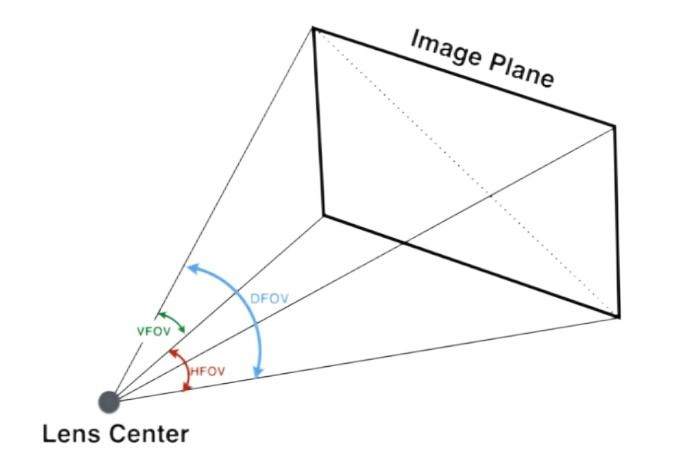

Field of View
The field of view is the angle range at which the camera can receive images in the shooting scene, which is divided into VFOV, DFOV, and HFOV. In the USB camera industry, publicity and specifications generally refer to DFOV, which determines the core of this angle. Factors are the size of the sensor, the size of the lens and the distance between the sensor and the lens.
Due to the usage scenarios of USB cameras, standard lenses are generally used, and the FOV does not exceed 90 degrees, because excessive angles cause edge distortion of the picture, resulting in image distortion.
Focus Type
The main purpose of focusing is to clearly present people or objects in the picture. In the evolutionary history of USB cameras, the main focusing methods include manual focus, fixed focus and automatic focus.
Currently, the market is dominated by fixed focus and autofocus, and autofocus must rely on the motor inside the machine, so the cost will be more expensive than fixed focus camera models, but the benefits are significant: Autofocus will adjust according to the users’ distance from the camera automatically adjusts the focus so that they remain clear in the video.
USB Webcam with Microphone and Speaker
Whether you need a webcam with microphone and speaker depends on your usage scenarios and needs. Built-in microphones in video conferencing and online education can provide clear enough sound effects. But if you are a live broadcaster or a content creator who records videos, it is not recommended to use the built-in microphone of the web camera as the audio input for your video but to purchase a professional stand microphone. The cost and structure of the USB camera limit its inability to compete with professional microphone.
Webcam with speaker are a new trend. In the past, the traditional approach was that we needed independent cameras, microphones and speakers to cooperate with each other to complete video conferencing and online courses. This kind of USB camera with built-in microphones and speakers is also called a all in one camera makes video calls more flexible without complicated equipment, and it also effectively reduces costs.
What is the use of USB camera?
As a digital camera device, USB cameras are also used in the video field. With the development of the market, conventional USB cameras can already met most basic needs in terms of parameters and functions. However, matching specific functional parameters and usage scenarios will bring the user experience to a higher level:
- Work From Home, Small Video Conferencing: 1080P resolution is suitable for most video software, built-in microphones and speakers can start conferencing without additional equipment, privacy settings and smaller field of view protect private scenes from being leaked
- Larger Video Conferencing: 4K resolution is suitable for large-sized conference screens and has a larger field of view to show more participants
- Live Broadcast or Content Creator: 1080P, 2K, 4K resolution depending on needs, more importantly, high frame rate 60fps and autofocus to improve the smoothness and clarity of the video, and the streaming camera with 60fps and LED light can keep the light sufficient
- Online Course: automatic focus, remote control panning and rotation
Advantages of USB Camera
High adaptability and plug-and-play are obviously the biggest advantages of USB camera as a camera device. Generally speaking, it is suitable for almost all computers with Windows and Mac operating systems installed and almost all software that needs to output images. When purchasing a webcam In the process, there is almost no need to consider whether it can be used on your computer.
At the same time, its imaging effect has nothing to do with your settings and usage. All picture effects, white balance, and color adjustment are determined by the manufacturer’s firmware. Users can hardly change the picture effects, so choose experienced USB camera manufacturers are particularly important. Their experience determines that the cameras they produce are mature in all aspects.
Conclusion
This article provided by ANYWII, a USB camera manufacturer with more than 10 years of experience, explains in detail the main functional parameters of this popular electronic product from the concept, structure, and working principle, and summarizes the requirements for USB cameras in different usage scenarios. We hope it can It will be helpful to all users who want to know or want to purchase this product.
Feel free to contact us for more information, and if this article was helpful, you are welcome to share it with anyone in need.
FAQs
What is the difference between a network camera and a USB camera?
A USB camera transmits data to a computer through a USB cable for video communication, while a network camera transmits video data by connecting to a home LAN, allowing content to be viewed remotely through a mobile phone, and is more commonly used in the security field. You can also get more information in 5 Minutes to Discover the Fascinating Tech Inside the Wifi Panorama Camera
Where do I connect my USB camera?
Use the USB port on the camera cable to connect to the USB port that comes with the computer, then open the video software you want to use and select the camera to output images. Sometimes the camera’s interface is USB-A and the computer’s interface is USB-C, or vice versa. Then you need a USB-A to C adapter to make the connection.
